Originally Posted by mikejr

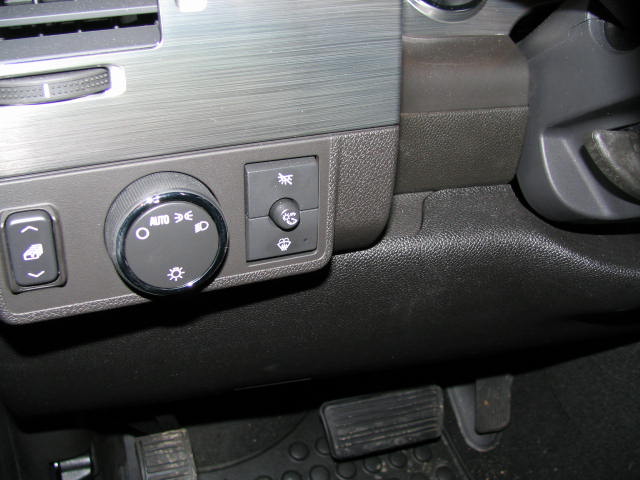

T - here are some photos of the install under the hood and also the switch on the dash. The switch on the dash is a combo switch, the top part kills the interior lights when the door is opened, the center round one controls the dash lights and the lower 1/2 of the switch is the heated washer fluid switch and indicator light.

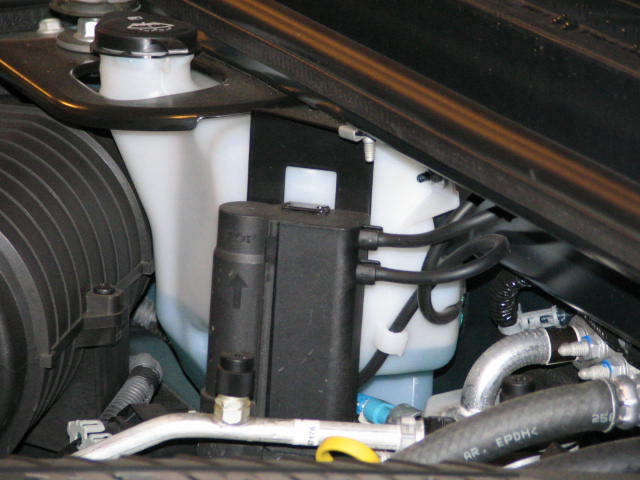

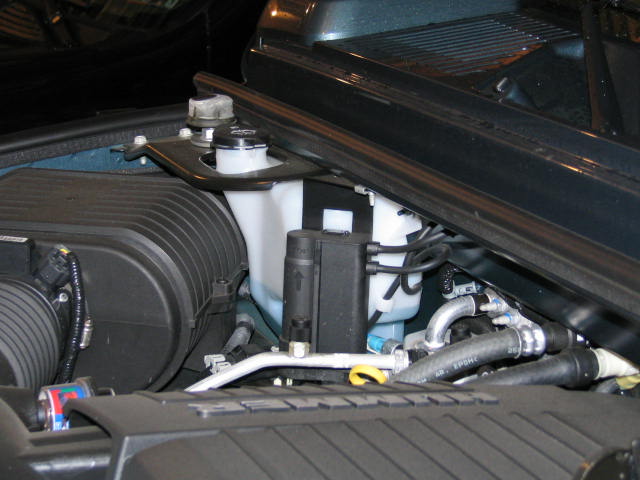

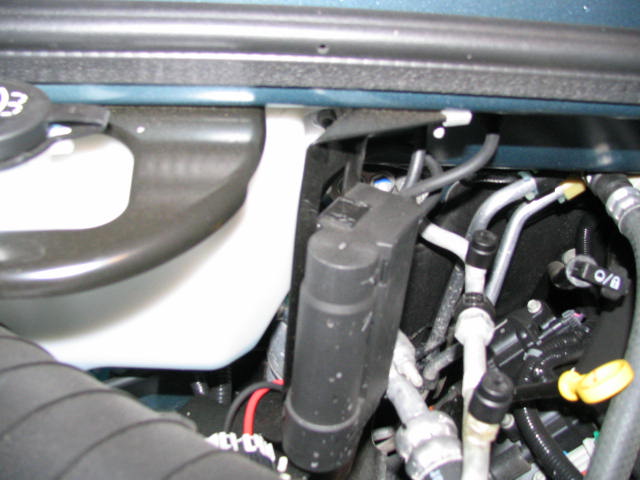

The under hood unit is mounted with a bracket on the drivers side of the washer tank. There are some pretty girthy wires running into the unit so it must draw quite a bit of juice.

Kinda hard to get a good shot where its located and all the other stuff in the engine bay. I guess I could rip out the engine and get you a few better photos...LOL

Hope these help!
Attachment 44999

Attachment 45000

Attachment 45001

Attachment 45002
