Part # for cargo net side clip


I need the part # for the side clip that holds the cargo net to the side panel.(1 inch round w/tab in middle)

My brother in law tossed his luggage in and caught the net and snaped the clip:twak: (last time I pick him up at the airport)

Re: Part # for cargo net side clip


It is the cargo shade retainer( not the net.)
I called the dealer Part # is 10414612
For future reference

Re: Part # for cargo net side clip


Thanks 442. Send your in law a invoice with a coupon for the airporter:raar:

Re: Part # for cargo net side clip


Hummerparts.com $2.60 i ordered 2 $9.25 shipping(minimum)

He brang me out to dinner for the pick up so Ill call it even.

Re: Part # for cargo net side clip


hey 442, when did you order that part? that site doesnt seem to be working for me and i havent been able to find anything else searching the web.

Re: Part # for cargo net side clip


Yeh :raar: that sight sucks.
Changed owners(sold,resold resold again) several times ,I cant find my order ?they can find my order
I dont think I was billed ?
New owners looking into it.Guy seems OK

The last guy worked for a dealer and was running it out of his house and Fvcked it up .

Im going to check one more time ,then Ill stop by local dealer or get it from GMpartsdirect Ther min shipping was higher,but I bought from them before and parts come fast no hassles


DO NOT BUY FROM Hummerparts.com

Re: Part # for cargo net side clip


I just ordered them from gmpartsonline. the shipping was like $12, but the part itself was like $2.24, i ordered 3 since i see them breaking again. my dog snapped the first one hopping into the back before i could remove the cargo cover. but i like having the cover to hide anything i have in the back whether its valuable or just covering a mess!

Re: Part # for cargo net side clip


Re: Part # for cargo net side clip


You lucky ducky:beerchug:


Seems my order disapeared .:confused: My local dealer only carrys one and there out and have one comming in next week.

Probobly stop in at this point,I wont be needing a extra as Im not useing the cargo shade soon.

Im removing the rear double seat putting in a platform (with storage under it)
Installing a 32 inch X 6 foot matteress(extra they sent me wrong one with camper and told me to keep it then sent correct one)
Also a box behind other rear seat with the fridge and dog bowls built in.

Mostly new set up for Dog that I can use 1 back seat.
Also for napping during my road trip to NM with the camper in may/june

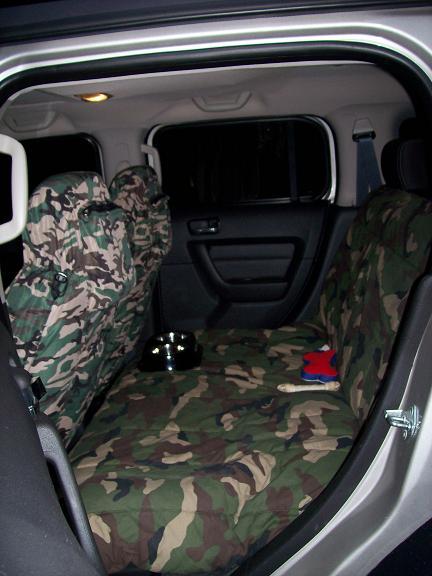

Dogs set up now



Attachment 50576

Attachment 50577

Re: Part # for cargo net side clip


Yah Know.... I could never get that sucker to lock down on the fixed portion. In other words... HTF does the removable portion lock onto the stationary clip.

Any body got a pic..??? I' must be a dumbass:violin: :popcorn:

Re: Part # for cargo net side clip


If your talkin about how to mount the shade,you hook the loop on the shade to the clips then hook the hooks on the shade to the rear seat last.
If your talkin about how to mount the clip it just snaps in.:giggling:

Re: Part # for cargo net side clip


No.....I'm talken about the rear cargo net clip behind the rear seat on the well panel. The clip on the stretch cord does not seem to lock down to keep the cargo net from popping off. See the pic's below..I have tried several different positions but my DUMBASSS can't seem to firure out how to lock that sucker on...:mad:

Re: Part # for cargo net side clip


I beleve thats to hold the seatbelt in place.

Do you have the cargo net or the cargo shade

If its the shade the loop part mounts near rear hatch on the circular clips and the hook part goes on the metal holder behind seat.

I think the cargo net uses clips to that metal holder behind seat

Re: Part # for cargo net side clip


Boy..I am A DUMASS...:D .. I have the Cargo Net... So where do the "HOOP" ends from the cargo net go then...???

I have the cargo net mouted behind the rear seats not in front of the rear cargo door .

The Snap Clips on the cargo net BOTTOM are cliped to the floor deck receivers. The top of the cargo net HOOPS I thought went where pictured in the last shot.

Then...If Not..Where TF do they go ....:crying:


Ok.. I just went out and repositioned the clip and put it on the seat belt.. that makes sense. But WTF is that side mounted pointy part where the elastic from the belt retainer goes..??..

Gvie me a min and I'll shoot some pic's Back in a few...

Re: Part # for cargo net side clip


Ok, Here's some more pic's of the way the seat beelt clip is set now. The Manual said nothing about thses clips. Look at the pic with the pointy part mounted to the side wall...Is that Correct in that posistion..?? Does it just float..??

Re: Part # for cargo net side clip


The net just hangs .you got it:beerchug: You could mount the bottom to the cargo floor if needed.

I think they hold the belt down for kids or vertically challenged adults.
I tuck mine in(on the side of the seat as I covered the back seat for the dog)

Re: Part # for cargo net side clip


VETTE,

your SMOKIN to much WEED !!!!!!!

Re: Part # for cargo net side clip


They are.. each end on the bottom is cliped to the floor hook's on each side.

So me gots the seat belt thingy's right..????? WTF does the end mouted on the side wall do...???? It just sit's there and rotates...??

This would have been alot easier it it was coveded in the manual.:soapbox:

Re: Part # for cargo net side clip


Yeah Duck Dude... I gotta start mixing a little Crack in with it...:D

Re: Part # for cargo net side clip


So me gots the seat belt thingy's right..????? WTF does the end mouted on the side wall do...???? It just sit's there and rotates...??


seat belt looks right
It just sits in the holder for storage I guess
I slide the seat belt in there also so its tucked in out of the way.


I have to build my new setup so I can use my right back seat then ill probobly leave the one seatbelt hanging out.
