08 Hummer H2 trailer help with how to light up the red N, specific how to do, ask for
1 Attachment(s)

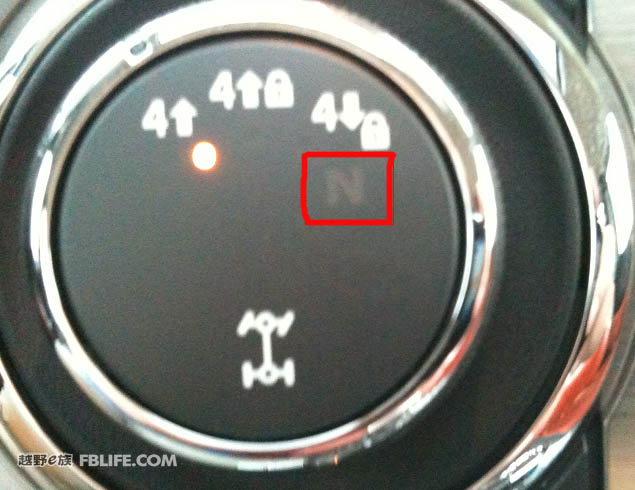

08 Hummer H2 trailer help with how to light up the red N, specific how to do, ask for help. Thanks
Attachment 52976 :) |
Re: 08 Hummer H2 trailer help with how to light up the red N, specific how to do, ask for
[/color]This is how the Manual describes shifting to Neutral and the second page shows shifting back out of Nuetral.
Hope that helps you. You are a long way from me in Alberta, Canada. ;) Shifting into NEUTRAL as follows To shift the transfer case to NEUTRAL do the following: 1. Make sure the vehicle is parked so that it will not roll. 2. Set the parking brake and apply the regular brake pedal. See Parking Brake on page 2-40 3. Start the vehicle or turn the ignition to ON/RUN. 4. Put the transmission in NEUTRAL (N). 5. Shift the transfer case to Two-Wheel Drive High. 6. Turn the transfer case dial clockwise to NEUTRAL position. The transfer case will not shift to NEUTRAL unless this position is held for 10 seconds. The NEUTRAL light will come on and then the dial can be slowly released. The dial will be in the Four-Wheel Low Lock position but the transfer case will be in NEUTRAL with the NEUTRAL light on. 7. If the engine is running, make sure that the transfer case is in NEUTRAL (N) by shifting the transmission to REVERSE (R) for one second, then shift the transmission to DRIVE (D) for one second. 8. Turn the ignition to ACC/ACCESSORY, which will turn the engine off. 9. Place the transmission shift lever in PARK (P). 10. Release the parking brake prior to moving the vehicle. 11. Turn the ignition to LOCK/OFF. Shifting Out of NEUTRAL as follows To shift out of NEUTRAL do the following: 1. Set the parking brake and apply the regular brake pedal. 2. Shift the transmission to NEUTRAL (N) and turn the ignition to RUN with the engine off. 3. Turn the transfer case dial to Four-Wheel High, Four-Wheel High Lock or Four-Wheel Low Lock. After the transfer case has shifted out of NEUTRAL the NEUTRAL light will go out. 4. Release the parking brake prior to moving the vehicle. Notice: Shifting the transmission into gear before the requested mode indicator light has stopped flashing could damage the transfer case. To help avoid damaging your vehicle, always wait for the mode indicator lights to stop flashing before shifting the transmission into gear. 5. Start the engine and shift the transmission to the desired position. Recreational Vehicle Towing Recreational vehicle towing means towing your vehicle behind another vehicle – such as behind a motorhome. The two most common types of recreational vehicle towing are known as “dinghy towing” (towing your vehicle with all four wheels on the ground) and “dolly towing” (towing your vehicle with two wheels on the ground and two wheels up on a device known as a “dolly”). Dinghy Towing Use the following procedure to tow your vehicle: 1. Shift the transmission to PARK (P). 2. Turn the engine off, but leave the ignition in ACCESSORY. 3. Firmly set the parking brake. 4. Securely attach the vehicle being towed to the tow vehicle. {CAUTION: Shifting a full-time four-wheel-drive vehicle’s transfer case into NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P). You or others could be injured. Make sure the parking brake is firmly set before you shift the transfer case to NEUTRAL. 5. Shift the transfer case to NEUTRAL (N). See Full-Time Four-Wheel Drive on page 2-36 for the proper procedure to select the NEUTRAL position for your vehicle. 6. Release the parking brake only after the vehicle being towed is firmly attached to the towing vehicle. You can use your vehicle’s front mounted receiver with the proper accessories to tow it. See “Front Mounted Receiver” under If Your Vehicle is Stuck in Sand, Mud, Ice, or Snow on page 4-39. 7. Turn the ignition to ACCESSORY. 8. Disconnect the battery if you are going to tow for long distances or long periods of time. When towing your vehicle for extended periods of time, start your vehicle as often as possible to prevent battery drain. This should only be done when the tow vehicle is parked. Dolly Towing Your vehicle cannot be dolly towed. If you must tow your vehicle behind another, use the dinghy towing procedure listed previously. Notice: Dolly towing your vehicle will damage drivetrain components. Do not dolly tow your vehicle. |
