What backspace are you running on your 2's wheels, pics??


I finally found 2 different sets of wheels locally that I really like.

One set is an 18x9 rim with a 4.5" backspace.

Second set are 17's with a 5" backspace, I'm assuming 8.5" wide.

I'm curious what backspace others are running and how it looks. I have the extended fender flares and want to bring the wheels outward a bit. The stock wheels look horrible with extended flares with the huge backspace we have.

Thanks in advance!

Re: What backspace are you running on your 2's wheels, pics??


I'm pretty sure the stockers are 5.5" BS...so it depends on what you're looking for; flush with the flare or poking out a bit (I personally like 'poking out a bit,' but not more than an inch). Measure the difference from the edge of your flare to the tire and go for a rim that moves you out to where you wanna be.

I've got some pics at home of mine...I'll pull them up tonight and post.

Re: What backspace are you running on your 2's wheels, pics??


Sounds good, thanks.

It seems a -12 offset is pretty popular, on a 9" wide rim that is a 4.5" backspace. I wanted to make sure any wheels I bought were Rancho lift compatible for possible down the road mods. Other people have posted pics of their 4.5" backspace and it seems to be just perfect with the wide offroad fender flares.

What backspace or offset (with rim width for offset) are yours? I ask for the width so I can figure the backspace, most people I've been talking to know only one or the other measurement.

Re: What backspace are you running on your 2's wheels, pics??


First off...a -12mm offset on a 9" rim would be about a 3" backspace. Here's a good offset/backspace calculator: http://www.customwheeloffset.com/tir...et-calculators

The 'offset' tells you how far off the bolt face is from the rim's center line. Negative offset puts more of the rim/rubber out of the fender wells and a positive offset puts more rim/rubber in toward the suspension.

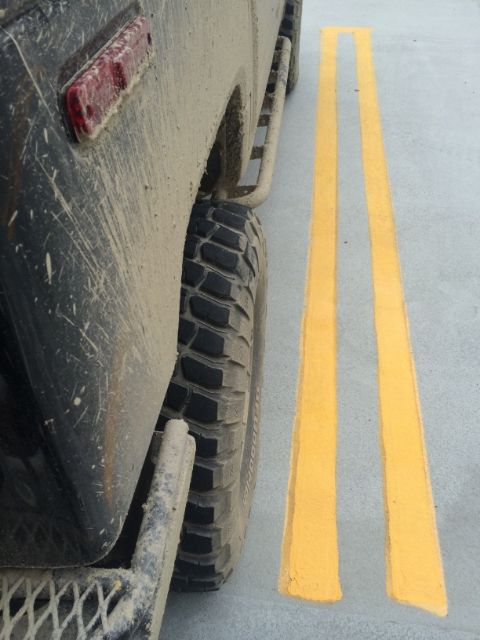

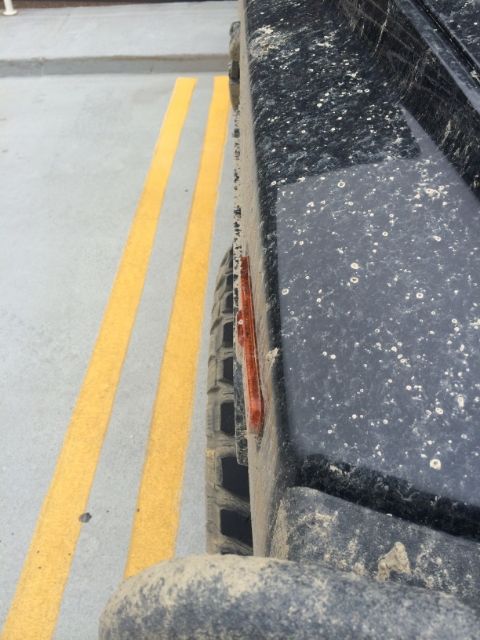

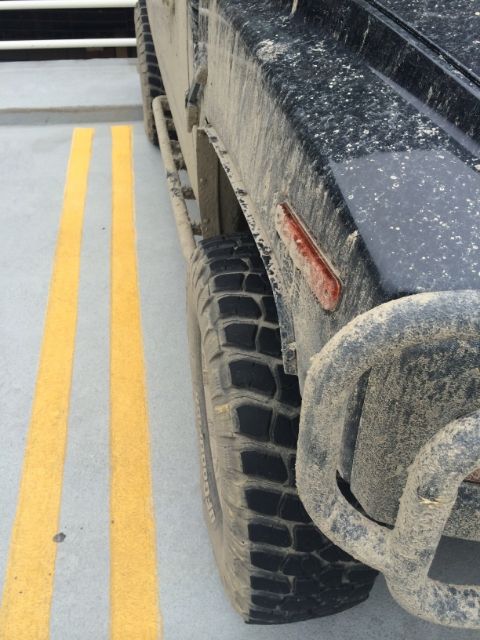

My Rockstars are 18x9 with a 0mm offset (so a 4.5" backspace). I'm running 37x18x12.5 BFG MTs with no flares and have about 2" of rubber poking out. When I still had the stock flares they poked out about an inch. I think you'll either need a wider tire or a rim with more of a negative offset (shallow backspacing) to get the rubber to reach the edge of an EG-style flare (larger than stock).

Re: What backspace are you running on your 2's wheels, pics??


That's why I prefer looking at backspace only, I've used that calculator and gotten different results with the same values.

I'm looking at Method Wheels:

The 17x8.5 shows a 0mm offset and a 4.72" backspace.

The 17x9 shows a -12mm offset and a 4.25" backspace.

According to the calculator a 9" wide wheel with a -12mm offset would be a 4.5" backspace. That seems to be a common measurement with 9" wide wheels. Yet tirerack says different.

I was going to go with the 9" wide for the shallower 4.25" backspace. I'm assuming the difference from stock of 1.25" means the wheels would be pushed outward that far? Maybe a little more since the rim is 0.5" wider?

I'm going to call tirerack before I order but I'm ready to pull the trigger. I'm so tired of trying to find used wheels!

Re: What backspace are you running on your 2's wheels, pics??


I'm with you...you seem to get different 'definitions' of 'offset' and how it relates to backspacing, depending on where you go. I too prefer to look at backspacing only.

Yeah...a shallower backspacing will push your rim/rubber out from the fenders more. I think you're on the right track.

Re: What backspace are you running on your 2's wheels, pics??

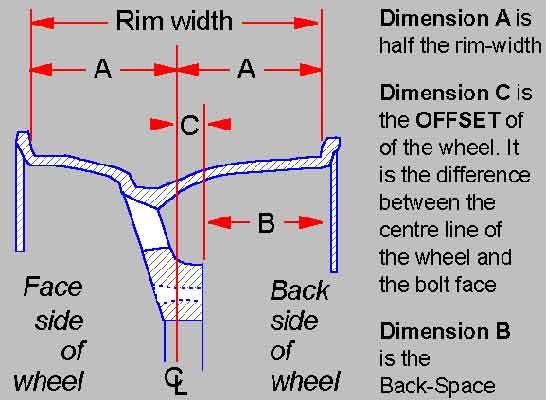

I still don't get it...according to this (and just about every other image I find) a 0mm offset means that your backspacing is exactly 1/2 of the wheel width.

So...why does every offset/backspace calculator I find say that a 9" wide rim with a 4.5" backspacing is a -12mm offset?

Re: What backspace are you running on your 2's wheels, pics??


Exactly my point, I get backspacing-its a no brainer. Bring offset into that equation and it makes absolutely no sense.

You are correct though, a 0mm offset would put the mounting face at exactly the middle of the wheel. So a 9" wheel would indeed be a 4.5" backspace.

You mentioned yours sticking out about 2 inches so the method wheels I'm looking at with the 4.25 (which also says a -12 offset lol) backspace would come out a little farther and should be perfect with my offroad flares.

I'm going to call TireRack right now and see what they say about these measurements. If they are what their site says I'm going to order those wheels with the Kumho Road Venture MT's in 315.

Re: What backspace are you running on your 2's wheels, pics??


I also appreciate commenting on this thread. I have posted a few wheel threads and never gotten many replies.

So Charlie at TireRack did confirm those backspaces I mentioned on these Method wheels. I placed an order for the 17x9 with the 4.25" backspace. I'm going to measure the backspace when they arrive next week. According to various calculators a 4.25" backspace on a 9" wide wheel is a -19 offset.....we shall see!
