Go Back   Hummer Forums by Elcova > Hummer H2 Discussion Forums > Technical Discussion and Customizing your H2

Reply

Thread Tools Search this Thread Display Modes
  #1
Old 03-03-2005, 03:26 PM
DH22G's Avatar
DH22G DH22G is offline
Hummer Professional

Join Date: Nov 2003
Location: WESTLAKE VILLAGE, CA, USA
Posts: 300
DH22G is an unknown quantity at this point
Default

? Iam changing diff covers and I need to get new gear oil of course. I was going to go with Royal Purple Gear Max but i didnt know what weight to go with. The lady at the shop said that 75-90? was the more common. I dont know gears and oil if my life depended on it.. Any sugestions? I need a good synthetic oil and the purple i heard to be the best.
__________________
- DH22G
David
2007 Acura TL Type S
03 H2 White... too much to list
2003 Malibu Wakesetter VLX -READY FOR THE SUN
Reply With Quote
  #2
Old 03-03-2005, 03:26 PM
DH22G's Avatar
DH22G DH22G is offline
Hummer Professional

Join Date: Nov 2003
Location: WESTLAKE VILLAGE, CA, USA
Posts: 300
DH22G is an unknown quantity at this point
Default

? Iam changing diff covers and I need to get new gear oil of course. I was going to go with Royal Purple Gear Max but i didnt know what weight to go with. The lady at the shop said that 75-90? was the more common. I dont know gears and oil if my life depended on it.. Any sugestions? I need a good synthetic oil and the purple i heard to be the best.
__________________
- DH22G
David
2007 Acura TL Type S
03 H2 White... too much to list
2003 Malibu Wakesetter VLX -READY FOR THE SUN
Reply With Quote
  #3
Old 03-03-2005, 03:36 PM
Kevin B Kevin B is offline

Join Date: Nov 2002
Location: San Diego CA.
Posts: 851
Kevin B is off the scale
Default

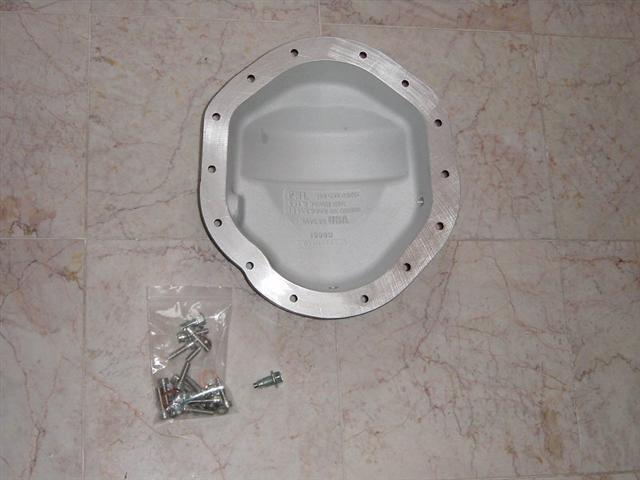

Here's some good info and Phil knows of what he speaks
Attached Images

Reply With Quote
  #6
Old 03-03-2005, 03:48 PM
DH22G's Avatar
DH22G DH22G is offline
Hummer Professional

Join Date: Nov 2003
Location: WESTLAKE VILLAGE, CA, USA
Posts: 300
DH22G is an unknown quantity at this point
Default

awesome thanks guys.. so when i bolt it back up i bolt the whole thing and then where is the filler hole? i know iam a retard first timer here!
__________________
- DH22G
David
2007 Acura TL Type S
03 H2 White... too much to list
2003 Malibu Wakesetter VLX -READY FOR THE SUN
Reply With Quote
  #7
Old 03-03-2005, 04:02 PM
Kevin B Kevin B is offline

Join Date: Nov 2002
Location: San Diego CA.
Posts: 851
Kevin B is off the scale
Default

It looks like the fill hole on Phils is on the side.

Hey thats funny..........Phils fill hole .........OH MY
Attached Images

Reply With Quote
  #8
Old 03-03-2005, 04:06 PM
DH22G's Avatar
DH22G DH22G is offline
Hummer Professional

Join Date: Nov 2003
Location: WESTLAKE VILLAGE, CA, USA
Posts: 300
DH22G is an unknown quantity at this point
Default

my cover does not have any drain or fill holes.. is there a spot on top of the dif case? also how fill should these be? completely?
__________________
- DH22G
David
2007 Acura TL Type S
03 H2 White... too much to list
2003 Malibu Wakesetter VLX -READY FOR THE SUN
Reply With Quote
  #9
Old 03-03-2005, 04:10 PM
Kevin B Kevin B is offline

Join Date: Nov 2002
Location: San Diego CA.
Posts: 851
Kevin B is off the scale
Default

<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">my cover does not have any drain or fill holes.. </div></BLOCKQUOTE>


I guess you will have to put the oil in and slap the cover on real quick .

Seriously though, that sucks .
Reply With Quote
  #13
Old 03-03-2005, 04:34 PM
PARAGON's Avatar
PARAGON PARAGON is offline
Banned

Join Date: Jan 2003
Posts: 24,247
PARAGON has a little shameless behaviour in the past
Default

<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by PhilD:
The manual says the rear diff only holds 4 pints, but that just doesn't seem right. I put in 7.5 pints with a new diff cover. </div></BLOCKQUOTE>Ok, a little wierdosity here. Phil, I just looked at the service CD and the '03 ballpark capacity is listed at 4 pints, but the '04 and '05 says 2.75 quarts. Maybe there was a change to the chunk or to the cover between '03 and '04 and your cover is more like the '04/'05 one.

DH, you really need a cover that is designed for the the H2. The fill plug is also the check plug, so without it there is no way to see how much oil is in your differential.
Reply With Quote
  #14
Old 03-03-2005, 04:36 PM
RIC-H0's Avatar
RIC-H0 RIC-H0 is offline
Hummer Guru

Join Date: Nov 2003
Location: Yes..I really moved outta Texas!!
Posts: 2,605
RIC-H0 is an unknown quantity at this point
Default

I would send it back if it doesn't have a fill hole.
"cause what they sent you was a really expensive helmet!

Ric-H2
__________________
If you can't be a good example...Then you might as well be a horrible warning!
www.meatspin.com
Reply With Quote
  #15
Old 03-03-2005, 04:37 PM
PARAGON's Avatar
PARAGON PARAGON is offline
Banned

Join Date: Jan 2003
Posts: 24,247
PARAGON has a little shameless behaviour in the past
Default

Phil, there was a drain plug on the bottom of the housing wasn't there? I think i remember it being there and not on the cover.
Reply With Quote
  #17
Old 03-03-2005, 05:06 PM
HUMMERcustoms.com/TAZ's Avatar
HUMMERcustoms.com/TAZ HUMMERcustoms.com/TAZ is offline
Hummer Authority

Join Date: Nov 2004
Location: Little Rock, Arkansas
Posts: 1,784
HUMMERcustoms.com/TAZ is off the scale
Default

Phil does trialduty.com have the best price on the black with polished fins? I'm going to change mine out but do not want polished look underneath. I'm calling dealer today as I want them to tell Me what I'm seeing from people that know what they are doing. this to me is very disturbing. I'm headed out right now but late today or Friday i'm pulling the check plug and see what is in there. I do not run mine as hard as you guys or close to it but, it is designed to do what You do and that is all the fluids will take! I'm going to get all synthethic and change everything to Mobile 1. I was going to go with Redline but the ordering and waiting I have decided I do not want to get into that. Same with Royal Purple. I have visited with a few mechanics and they say Mobile 1 is as good as any for the application I'm using it for. Could You give an update on the dino oil and the synthetic that some of You have put back in? ALSO, have any done a temp check as discussed in Phil's thread?
Thanks
TAZ
__________________
05 H2 SUV cus. paint, Magnuson SC 6/12lb boost, cowl hood scoop, 12" dash touchscreen, GM elec. fans, HPTuners.com tuning soft., Dynatech headers dual catback exhaust Jet Hot chrome front to back Flowmaster Super 40's, Diamo 8 Karat rims & 325X60-20" Toyo, 4 OEM Captain seats Katzkins leather, rear console computer inside running all AV/NAV etc., Infinity component system 3 amps Tsunami Caps, rear flip down 12" monitor, headrest monitors, overhead console boost, fuel pressure, & A/F ratio gauges
Reply With Quote
  #18
Old 03-03-2005, 05:42 PM
KenP's Avatar
KenP KenP is offline
Hummer Messiah

Join Date: Apr 2003
Location: Virginia Beach
Posts: 37,474
KenP is an unknown quantity at this point
Default

Uh, I must be wrong in my thinking as far as capacity goes. I was under the impression that if the fill hole is on the side you fill the diff to that point. That way you can't overfill it. The overfill just flows back out. So if that is true and the filler is on the side, just go buy 6 pints and return the left over.

Of course, this could be totally wrong and that would make this a useless post.
__________________
"My reading of history convinces me that most bad government results from too much government."---Thomas Jefferson
Reply With Quote
  #19
Old 03-03-2005, 05:54 PM
PARAGON's Avatar
PARAGON PARAGON is offline
Banned

Join Date: Jan 2003
Posts: 24,247
PARAGON has a little shameless behaviour in the past
Default

<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by sfox:
Isn't the drain hole shown in ths pic? </div></BLOCKQUOTE>I thought there was one on the housing. Now Phil has TWO cloaca.
Reply With Quote
  #20
Old 03-03-2005, 05:54 PM
KenP's Avatar
KenP KenP is offline
Hummer Messiah

Join Date: Apr 2003
Location: Virginia Beach
Posts: 37,474
KenP is an unknown quantity at this point
Default

Are you sure there is no fill hole on the other side? This is a different GM diff, but they seem to be consistant on some things:
http://www.off-road.com/chevy/projects/kickin/pml/

And here is a pic a different one, still:
Attached Images

__________________
"My reading of history convinces me that most bad government results from too much government."---Thomas Jefferson
Reply With Quote
