Winch Wiring
Here are some pics of the winch wiring for a portable winch that can be moved from the front of the vehicle to the back.
I used the Warn cables for front and rear placement.
__________________
If it has tires or testicles, you're going to have trouble with it
#2
12-08-2006, 12:44 AM
Hummer Guru
Join Date: Jan 2005
Location: Oregon
Posts: 4,321
Re: Winch Wiring

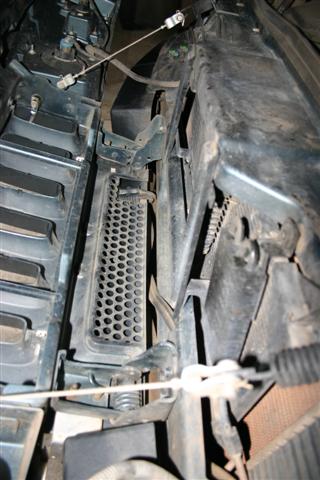

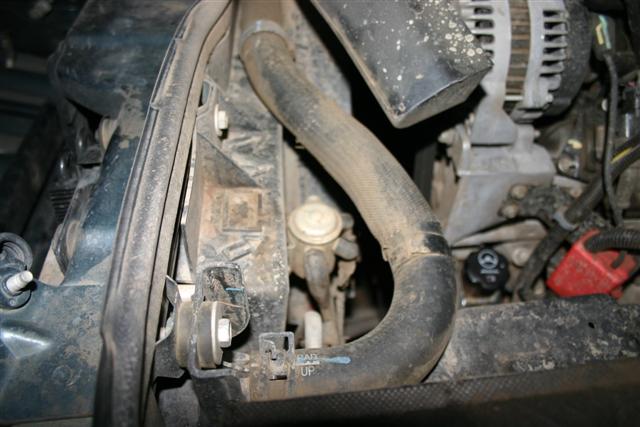

Hood open...The extra cable is pushed down under the bumper. The small grille is cut out so that it won't bend when the hood is open.
__________________
If it has tires or testicles, you're going to have trouble with it
#4
12-08-2006, 12:49 AM
Hummer Guru
Join Date: Jan 2005
Location: Oregon
Posts: 4,321
Re: Winch Wiring

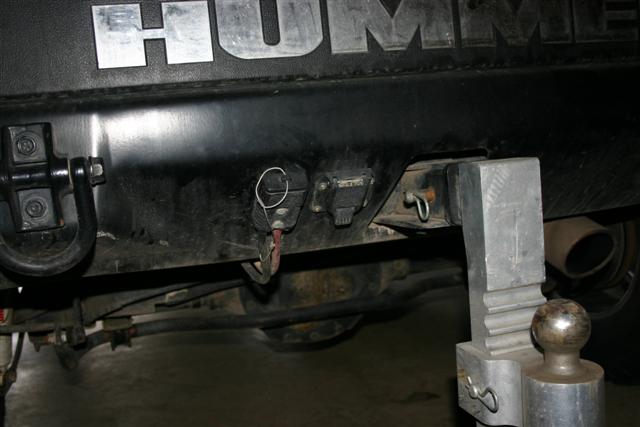

Here is a pic of the rear connector. I wouldn't recommend this orientation because the wiring is not protected from possible damage on a rock or stump or whatever.
__________________
If it has tires or testicles, you're going to have trouble with it
#5
12-08-2006, 12:51 AM
Hummer Guru
Join Date: Jan 2005
Location: Oregon
Posts: 4,321
Re: Winch Wiring

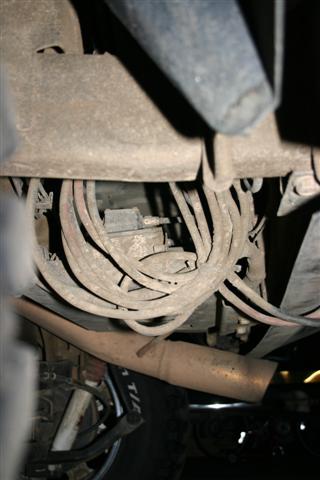

Extra length of wiring is bundled up underneath near the air compressor and zip tied in place. The cable is run on top of the driverside frame rail.
I hope this helps!
__________________
If it has tires or testicles, you're going to have trouble with it
#6
12-08-2006, 01:05 AM
Hummer Messiah
Join Date: Apr 2003
Location: Virginia Beach
Posts: 37,474
Re: Winch Wiring
Nice clean install. Did you just do it, everything is so shiney?
