Body Mounts??

[HumminNBoatin']

Has anyone changed them? If so do you have any tips on doing this???

[dvl57]

I actually had my Hummer dealership replace all the body mounts on my 08 H2.
It was making squeeking sounds when driving all low speeds.
They had to order several components so it took 2 days.

Unfortunately, I'm clueless on actually doing the work.
I wish I could be more help.

Are you having the squeeking sounds under your truck? (when you're going neighborhood speeds) Is that way you're changing the body mounts?

[twr]

Hi this TSB was for squeeking noises under your truck, likely this is what was done on your truck dvl57. If this is why your asking HumminNBoatin, it may still be fixed under warranty? hope this helps.

TECHNICAL

Bulletin No.: 07-08-61-006C

Date: July 24, 2008

Subject:
EI07118 - Underbody Noise, Pop, Creak, Body Mount (Install Upper Body Mount Insulators)

Models:
2005-2008 HUMMER H2

Supercede:

This bulletin is being revised to adjust the labor time. Please discard Corporate Bulletin Number 07-08-61-006B (Section 08 - Body and Accessories).

Condition

Some customers may comment on a noise coming from the underbody of the vehicle.

Cause

This condition may be due to body coning in the area of the upper body mounts.

Correction

Use the following procedure to install insulators to the upper body mounts. Do not attempt to repair any coning of the sheet metal on the underside of the body at the mount locations that may be observed when a body mount is serviced.

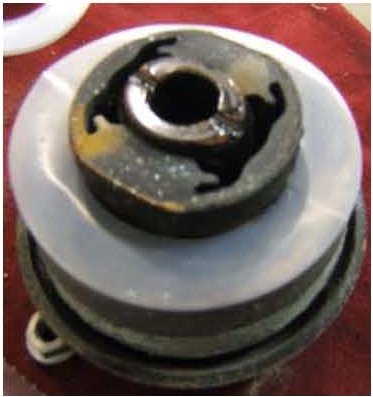

Installation of Insulators to the Upper Body Mount:

1. Raise the vehicle.

2. Loosen the lower body mounts on the right hand side of the vehicle. Jack Stand Location:

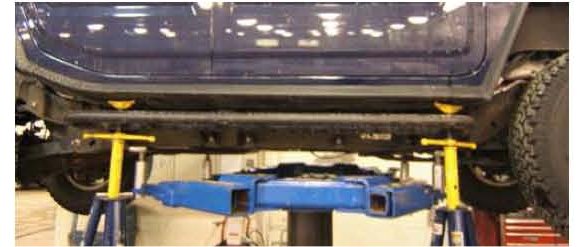

3. Install jack stands on the right hand side of the vehicle to support the body (refer to graphic # 1).

4. Slightly lower the vehicle just enough to provide access to the upper body mount.

[OrangeCrush]

I talked to one of Hummer's techs and they said they just get a antifreeze jug and cut a circle out of it and use that for the "repair".


Mark

[HumminNBoatin']

Its not sqeaking its loud clunking at slow speeds. Like hitting a driveway curb, rough roads, offroad, or accelerating at a stop light. So its replacement time I think.

[twr]

hi HumminNBoatin' if that is the case, clunking on accelerating check the front crossmember that has a big rubber mount in the center of it, that is for the front diff. I had the same clunking noise in my truck. I remove the crossmember and lubed the top of the mount where it bolts to the front diff. That was the fix for my problem, noise gone. Hope this helps.
