Go Back   Hummer Forums by Elcova > Hummer H2 Discussion Forums > Technical Discussion and Customizing your H2

Reply

Thread Tools Search this Thread Display Modes
  #1
Old 09-26-2005, 12:55 AM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

Winter's approaching. Noticed these on ebay a couple of days ago. The price is well below everyone else's.

HotShot

The guy has a few of them....
__________________


'03 H2
Reply With Quote
  #2
Old 10-03-2005, 05:15 AM
NJ H2's Avatar
NJ H2 NJ H2 is offline
Hummer Authority

Join Date: Apr 2003
Location: Las Vegas
Posts: 1,819
NJ H2 has a little shameless behaviour in the past
Default

<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by dochummer:
It works just fine manually though. Hey dick, did yours work on "automatic" when you had yours? </div></BLOCKQUOTE>

I have exactly the same problem. I will call tech support also to figure this out. The manual says it needs to be primed by activating the regular washer fluid to fill up HotShot the first time. I did that and used half the fluid in the tank and it still didn't work!
Let me know if you find out anything.
Thanks,
Jim
__________________
... Teh black won't get you back








Reply With Quote
  #3
Old 10-04-2005, 02:01 PM
NJ H2's Avatar
NJ H2 NJ H2 is offline
Hummer Authority

Join Date: Apr 2003
Location: Las Vegas
Posts: 1,819
NJ H2 has a little shameless behaviour in the past
Default

<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by dochummer:
ok, now I know who I'm calling first thing in the morning.

Just went through the tech section...did you install on the bulkhead or in the same spot I did? </div></BLOCKQUOTE>

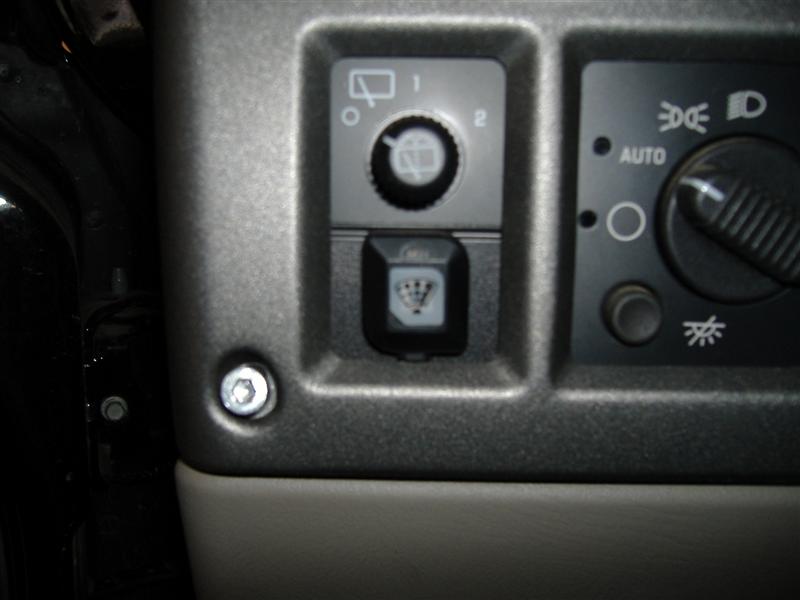

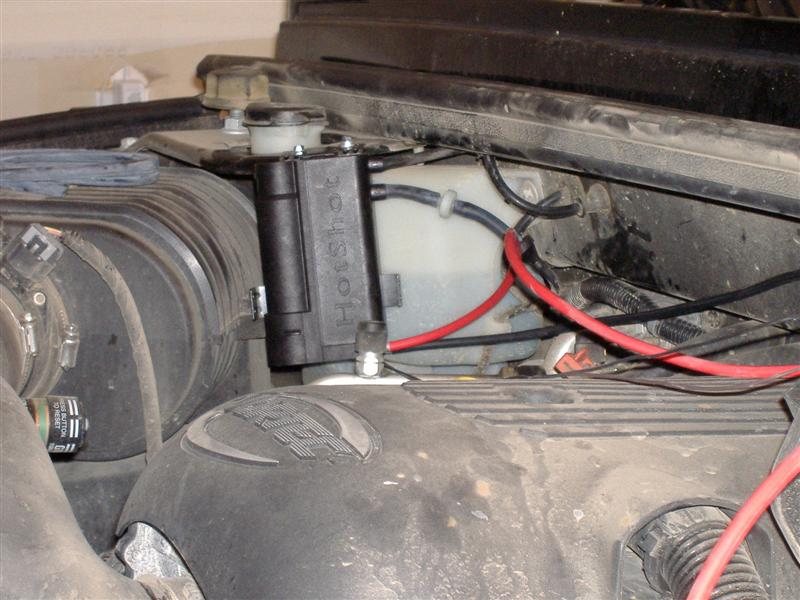

I ended up putting the unit on the firewall, the button on the right side of the wheel and the fuse I attached to the outside of the fuse box:
EDIT: Here is a link to the HOT SHOT FIX KIT INSTALLATION





__________________
... Teh black won't get you back








Reply With Quote
  #4
Old 10-03-2005, 04:31 AM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

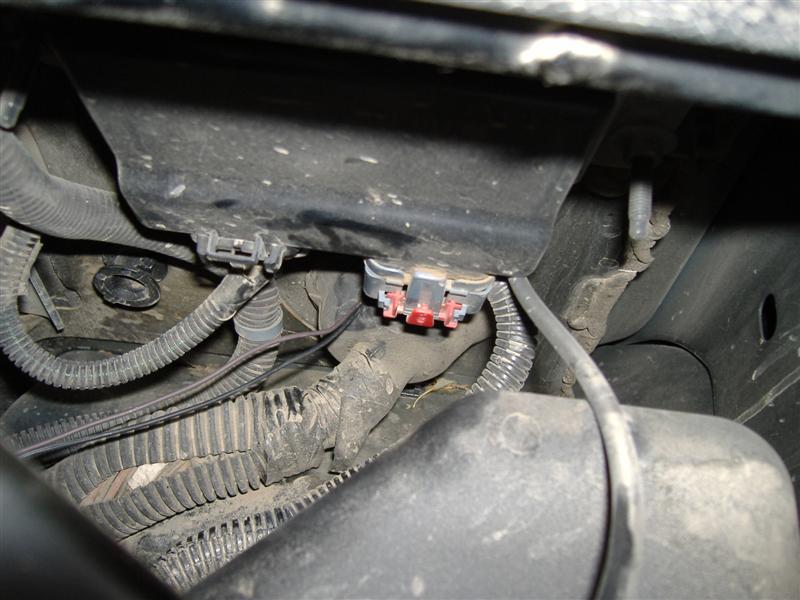

Splice into the line on the right...put two filters/whatever on...
Attached Images

__________________


'03 H2
Reply With Quote
  #5
Old 10-03-2005, 04:34 AM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

Punched through this grommet without any problems...much easier coming from the engine compartment to the inside...had to move the hood spring bracket out of the way
Attached Images

__________________


'03 H2
Reply With Quote
  #6
Old 10-03-2005, 04:36 AM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

2
Attached Images

__________________


'03 H2
Reply With Quote
  #7
Old 09-30-2005, 02:27 AM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

Any idea if they are going to use a different button from the one that came with the unit? I know the buick lesabre and Cadillac DTS will have the units too...
__________________


'03 H2
Reply With Quote
  #8
Old 10-03-2005, 10:50 PM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

Awe..How did you get it for free? I spoke with the guy..he said "is this jim?" I said "no, but probably the guy I've been talking to with the same problem." He told me that I would probably need the extra parts...come to think of it...it probably wasn't Jim that I talked to. Oh well...told me the kit would cost $4.00 plus shipping. So I checked around here locally without any luck and then called the order department. Just got a fax, and it says the kit is $2.00...they're going to try and just first class it to me instead of paying for ups... Oh well....just a couple of bucks..I actually got two kits...I might install one on my wife's vehicle...
__________________


'03 H2
Reply With Quote
  #9
Old 10-03-2005, 04:35 PM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

How much was the bypass kit +shipping? Do you think I could pick up the parts at the local auto store?
__________________


'03 H2
Reply With Quote
  #10
Old 10-02-2005, 04:53 AM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

Any word on which tube to attach it to? I haven't had a chance to take a closer look...just want to make sure I don't screw it up
__________________


'03 H2
Reply With Quote
  #11
Old 09-28-2005, 10:53 AM
Klaus's Avatar
Klaus Klaus is offline
Hummer Guru

Join Date: Nov 2002
Location: CSA
Posts: 2,511
Klaus is an unknown quantity at this point
Default

Since the announced "Limited-Edition Pacific Blue Hummer" has a heated wiper system, I wonder how difficult it would be to retrofit it to older H2s?

Anyone here know anything about retrofitting newer parts/options in older trucks?

Klaus

Supercharged 2003 H2 with UM8 Touch Screen Navigation Radio, U2K XM Digital Radio, U1S 6-CD Changer, Warn Winch/Bumper, and Rubber Duck UCP.

1996 Collector Edition Corvette
===============================================

Limited-Edition Pacific Blue Hummer Debuts
Date Posted 09-27-2005

DETROIT — A 2006 limited edition of the Hummer H2, in SUV and sport-utility-truck (SUT) versions, goes on sale this week with a new color choice and unique features.

The price of the SUV version of the Pacific Blue edition will start at $65,900, Hummer said. SUT pricing on the special model will start at $65,455. The Pacific Blue SUV and SUT will have a combined production of 875 units, the GM brand said.

The package features a body-color grille and fender moldings, brush and taillamp guards with a special finish, a rocker molding with an integrated assist step, 17-inch polished forged-aluminum wheels, carbon-fiber interior accents and a lower-profile, roof-mounted light bar. The package also has chrome hood handles, hood latches and a fuel-filler door.

In addition, the special edition has a heated windshield wiper system and a rear-seat DVD system with dual headrest-mounted screens and wireless headphones.

What this means to you: Hummer is working to keep people interested in its brand.
Reply With Quote
  #12
Old 10-04-2005, 12:07 AM
GeorgeSSSS's Avatar
GeorgeSSSS GeorgeSSSS is offline
Hummer Expert

Join Date: Dec 2004
Location: Call-ee-FOR-nya
Posts: 853
GeorgeSSSS is off the scale
Default

Guys:

I am guessing that at some point the line to the rear window nozzle passes under the vehicle with the other fore/aft piping. That means in subzero weather you must keep moving a column of heated fluid through chilled piping until you heat the piping sufficiently that it doesn't cool the fluid to the point of being ineffective in removing ice. My guess is that it would require at least two complete flushes of the rearward piping to work. I don't think the HotShot holds that much fluid. Doesn't seem very efficient to me.

I'd be curious to hear from someone who has used the rear bypass kit on an H2 in severe weather.

Let me say that I'm having the HotShot installed for use with my front washers to remove ice when I go hunting this winter. I understand it works very well in that mode.

George SSSS
__________________
Black 2005 Adventure Series; factory touch screen GPS w/XM radio; factory express open/close sunroof; reclining second row seats; Warn 9.5ti Multi-Mount Winch; Gobi Stealth roof rack with PIAA lights; HotShot windshield washer fluid system
Reply With Quote
  #13
Old 09-28-2005, 09:47 AM
Vandakeg Vandakeg is offline
Hummer Veteran

Join Date: Sep 2005
Posts: 90
Vandakeg is off the scale
Default

I remember seeing these at a car show about 5 years ago.... Something about shooting hot water on a frozen windshield doesn't seem like a good idea to me.
Reply With Quote
  #14
Old 10-04-2005, 01:19 PM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

Ok, spoke with Chris. Kits are free... Thanks NJH2.
__________________


'03 H2
Reply With Quote
  #15
Old 10-04-2005, 01:04 AM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

The bypass actually isn't for the rear washer. It allows the hotshot pump to draw fluid directly from the reservoir. If it doesn't have the direct flow, then the pump can't pull the water through because of the "one-pump" setup. If it can't get enough flow, then the auto setting is useless...

In the end...just helps get the unit working properly for the front windshield only...

Just make sure when you/whomever installs it, you need to get the bypass kit for it to operate properly in the H2. Like NJH2 said...you should be able to get it free...otherwise $2.00.
__________________


'03 H2
Reply With Quote
  #16
Old 09-30-2005, 04:01 AM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

was just about to post the same question NJ. I'm thinking about mounting the button just below the rear wiper control knob. If I can, I'll run the wire right down into the crack. As far as the heating unit, thinking about snipping the side tabs on the bracket, bending the top tabs at 90 degrees and mounting it on the L-bracket the goes around the top of the washer reservoir (where the hood bumper/support is also attached. Unless there's a better idea, I figure it should be enough out of the way..

Other question: which hose do we attach the heater to? The left or the right (the ones to the right of the washer reservoir)?
__________________


'03 H2
Reply With Quote
  #17
Old 10-04-2005, 04:42 AM
GeorgeSSSS's Avatar
GeorgeSSSS GeorgeSSSS is offline
Hummer Expert

Join Date: Dec 2004
Location: Call-ee-FOR-nya
Posts: 853
GeorgeSSSS is off the scale
Default

There is NOTHING like this website for getting all of the good information on H2s.

George SSSS
__________________
Black 2005 Adventure Series; factory touch screen GPS w/XM radio; factory express open/close sunroof; reclining second row seats; Warn 9.5ti Multi-Mount Winch; Gobi Stealth roof rack with PIAA lights; HotShot windshield washer fluid system
Reply With Quote
  #18
Old 09-28-2005, 04:45 AM
KenP's Avatar
KenP KenP is offline
Hummer Messiah

Join Date: Apr 2003
Location: Virginia Beach
Posts: 37,474
KenP is an unknown quantity at this point
Default

<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by AmericanPatriot:
Thanks for the post. Might buy one considering how cold it was here in Anchorage last winter. </div></BLOCKQUOTE>LAST WINTER? What about EVERY winter? Gives me the willies thinking about it. BRRrrrrr..... Hell, you're only looking at 50 for a high this week. Damn cold up there.
__________________
"My reading of history convinces me that most bad government results from too much government."---Thomas Jefferson
Reply With Quote
  #19
Old 10-02-2005, 10:18 PM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

Ok, finished it. I connected it to the B+ terminal and it works. The only thing that doesn't work is the automatic setting. It says it doesn't have water flowing in when it's on the auto setting. I'll have to call tech support tomorrow. It works just fine manually though. Hey dick, did yours work on "automatic" when you had yours?
__________________


'03 H2
Reply With Quote
  #20
Old 10-02-2005, 09:14 PM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,453
dochummer is an unknown quantity at this point
Default

Right side.

Ok, got everything installed, but messed up on my power point. I connected to the upper left stud under the fuse cover (I thought there was power, but then there wasn't...don't know which fuse to look at). So I switched to the upper right fuse...it started working, but then stopped. Blew the fuse...it's a 30amp...so have to get a new one. So, now the question is...can I attach the power line to the power post/stud on the left side of the fuse block? The lower one doesn't read power, but the upper one does. It's marked as B+ in the diagram.... Any thoughts before I blow another fuse? (oh, the one that came with the unit is a 60amp...that's why I blew the stud #2. )
__________________


'03 H2
Reply With Quote
