Go Back   Hummer Forums by Elcova > Hummer H3 Discussion Forums > H3 Classifieds

Reply

Thread Tools Search this Thread Display Modes
  #1
Old 03-26-2007, 01:18 AM
garnerbiker's Avatar
garnerbiker garnerbiker is offline
Hummer Veteran

Join Date: Feb 2006
Location: SIN CITY
Posts: 114
garnerbiker is off the scale
Talking Re: Spring hanger/shock mount skid plate

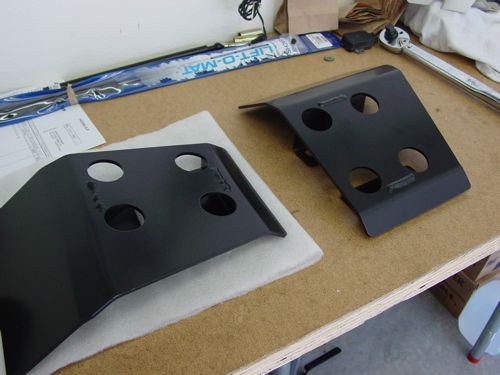

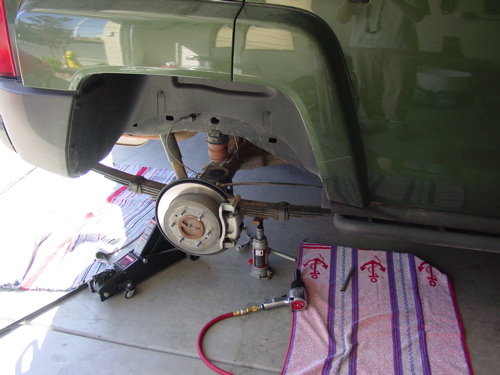

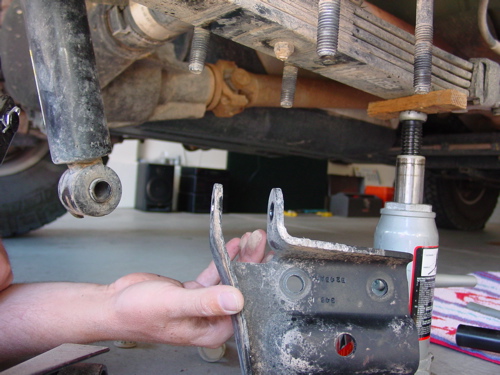

No long explanation needed. Just take off the U-bolt nuts and the shock bolt and put on the skid. You can get it all back up and then compress the shock to get it in. My friend and I did these yesterday in 45 min. I reccommend powdercoating! That was the first time that I had parts coated. DO IT!! It was 40 bills to do both plates. BEAUTIFUL!!!

I am glad I had my air system finally hooked up to rip the nuts off. Previous wheeling and abuse made them a bit tough to get off. Thank goodness I wasn't using a wrench.
Attached Images
File Type: jpg DSC09341.jpg (90.8 KB, 448 views)
File Type: jpg DSC09346.jpg (104.1 KB, 431 views)
File Type: jpg DSC09348.jpg (92.4 KB, 465 views)
File Type: jpg DSC09351.jpg (92.8 KB, 449 views)
__________________
[O][][][][][][][][O]
Reply With Quote
  #2
Old 03-26-2007, 07:11 PM
RuggedH2's Avatar
RuggedH2 RuggedH2 is offline
Hummer Authority

Join Date: Nov 2006
Location: SL,UT
Posts: 1,197
RuggedH2 is on a distinguished road
Default Re: Spring hanger/shock mount skid plate

Garner,

Sorry to go OT for a second, but

Do you always roll with the rear sway bar disconnected? If so, how do you like that around town?
__________________
Black Sheep Hummer Squadron

Reply With Quote
  #3
Old 03-26-2007, 09:46 PM
SR1355's Avatar
SR1355 SR1355 is offline
Hummer Professional

Join Date: Oct 2006
Location: NA
Posts: 478
SR1355 is on a distinguished road
Default Re: Spring hanger/shock mount skid plate

Thanks Hunner, Santa arrived today with a box full of metal. These things are built tough, I'll have installed tonight for a work-out in MOAB...
__________________
Paul M
SR1355
www.dangerousdesignsonline.com

Black Sheep Hummer Squadron
Reply With Quote
  #4
Old 03-26-2007, 10:01 PM
CrisB's Avatar
CrisB CrisB is offline
Hummer Professional

Join Date: May 2006
Location: Michigan (non-PIKER)
Posts: 414
CrisB is an unknown quantity at this point
Default Re: Spring hanger/shock mount skid plate

Cool!! Be careful welding, Paul...disconnect both pos & neg battery cables & touch together to do an auto shutoff on the computers, then wait 15 minutes.

Got that tidbit from my service manager, he said there's something like 6 different computer modules to protect from frying out.

Use a ratchet strap to hold up the shock.
__________________
2006 H3 Adventure, green in & out, Line-X, no bling. Onboard air, Rino GPS, BVG roof rack, roof-mounted lights, Warn xd9000i winch, RR rails, Hunner's skid plates, custom UCP, rear tire rack, roofcam.

1965 IH Scout 80, fully restored with winch, lockers, Dana 44's...holds it's own to an H3.
Reply With Quote
  #5
Old 03-27-2007, 02:44 AM
garnerbiker's Avatar
garnerbiker garnerbiker is offline
Hummer Veteran

Join Date: Feb 2006
Location: SIN CITY
Posts: 114
garnerbiker is off the scale
Default Re: Spring hanger/shock mount skid plate

I took off the rear sway bar per advice from some XJ friends. The rear gets a little bit more articulation. Around town I don't notice. That could be because I drive it like a Cadillac....slow and smooth....

I just got to get on the front plates now.

When welded on, can you still remove the spring easily?
__________________
[O][][][][][][][][O]
Reply With Quote
  #6
Old 03-27-2007, 06:35 AM
Hunner's Avatar
Hunner Hunner is offline
Hummer Professional

Join Date: Sep 2006
Location: Arkansas
Posts: 363
Hunner is on a distinguished road
Default Re: Spring hanger/shock mount skid plate

I don't believe it can ever touch. I ran Long Ranch and inspected mine and had painted that area so I could see if it did. I stretched everything including my rear bumper and they did not touch the spring. The first set they had them a little tall on the front curl. I had it shortened before the production run and now use those two longer ones for door stops.
__________________
Traded 06 I-5 for 08H3 ALPHA/Adv,WarnPowerPlant9500,Warn 9000ti rear,Steelcraft brush/winch mt,RockyRoadrails/Hunner mod,GMUCP,Hunner rear/shock skids,OEM roof lights,Rola rack,2GoLights,Hunner steering gear mount,Purple Cranium diff guard,BulletProof tie rods,ARBsnorkle, SyKlone prefilter,Hunner intake pipe.
Reply With Quote
  #7
Old 03-27-2007, 01:39 PM
garnerbiker's Avatar
garnerbiker garnerbiker is offline
Hummer Veteran

Join Date: Feb 2006
Location: SIN CITY
Posts: 114
garnerbiker is off the scale
Default Re: Spring hanger/shock mount skid plate

what about trying to take the spring out?
__________________
[O][][][][][][][][O]
Reply With Quote
