Go Back   Hummer Forums by Elcova > Hummer H2 Discussion Forums > Technical Discussion and Customizing your H2

Reply

Thread Tools Search this Thread Display Modes
  #1
Old 01-21-2003, 12:09 PM
TG TG is offline

Join Date: Nov 2002
Location: Natchez, MS
Posts: 25
TG is off the scale
Default

It's time for my 1st oil change and I don't want to drive the 90 miles to my Hummer dealer for basic service, but I want to be sure that my Hummer is serviced properly. Is there any tech info available on where all the lube fittings are located? Is the oil filter a special type for the Hummer? Any other info that I need to know would be very helpful!
Reply With Quote
  #2
Old 01-21-2003, 12:09 PM
TG TG is offline

Join Date: Nov 2002
Location: Natchez, MS
Posts: 25
TG is off the scale
Default

It's time for my 1st oil change and I don't want to drive the 90 miles to my Hummer dealer for basic service, but I want to be sure that my Hummer is serviced properly. Is there any tech info available on where all the lube fittings are located? Is the oil filter a special type for the Hummer? Any other info that I need to know would be very helpful!
Reply With Quote
  #4
Old 01-21-2003, 03:21 PM
Texas Red's Avatar
Texas Red Texas Red is offline
Hummer Expert

Join Date: Nov 2002
Location: North Texas
Posts: 523
Texas Red is off the scale
Default

My dealer says you have to remove the front skid plate to get to all the lub points.
__________________
Jim
2003 H2 Metallic Red (now gone)
2008 H3 Graphite Lux
Reply With Quote
  #6
Old 01-21-2003, 04:50 PM
TG TG is offline

Join Date: Nov 2002
Location: Natchez, MS
Posts: 25
TG is off the scale
Default

Thanks for the diagram, PhilD! Do you know what type of oil filter is needed?
TG
Reply With Quote
  #8
Old 01-21-2003, 05:22 PM
JCJ JCJ is offline

Join Date: Nov 2002
Location: Aruba
Posts: 349
JCJ is off the scale
Default

PhilD,
Where did you get the service manual?
Is it hard copy or CD-ROM format?
It's "Out of stock" for months at Helminc.com
Reply With Quote
  #10
Old 01-21-2003, 07:08 PM
JCJ JCJ is offline

Join Date: Nov 2002
Location: Aruba
Posts: 349
JCJ is off the scale
Default

Many thanks PhilD!
Just bought a set of GM Service Manuals at Ebay at Ebay frm "qualityandprice" fo $ 39.50.
I knew I'd seen the local GM dealer use it, when looking up the part## of both tail gate struts, which become weak.
Reply With Quote
  #11
Old 01-24-2003, 01:35 AM
Hummerstein Hummerstein is offline

Join Date: Dec 2002
Location: Anacortes, WA, USA
Posts: 19
Hummerstein is off the scale
Default

Be careful w/ taking your rig for an oil change. Due to the location of the filter and the skid plate I just returned from a Chev Dealer to find the dealer had not tightened my filter w/ oil pouring out all under my drivetrain. Took it to a Hummer dealer only to find they were having the same problem.

Jim
03' Pewter, LUX H-2
00' K3500 Crew Cab
69' Toyota FJ-40 Land Cruiser
71' 427 FJ-40 Land Cruiser
02' Nissan Maxima SE
__________________
Jim
03\' Pewter, LUX H-2
00\' K3500 Crew Cab
69\' Toyota FJ-40 Land Cruiser
71\' 427 FJ-40 Land Cruiser
02\' Nissan Maxima SE
Reply With Quote
  #12
Old 01-24-2003, 10:15 PM
h2fan h2fan is offline

Join Date: Nov 2002
Location: long island
Posts: 214
h2fan is off the scale
Default

pf44 i think thats the same as my corvette
__________________
03/sunset orange supercharged & custom programed-- gale banks monster exhaust
Reply With Quote
  #13
Old 01-26-2003, 02:11 AM
Hummie2's Avatar
Hummie2 Hummie2 is offline
Hummer Professional

Join Date: Nov 2002
Location: La Porte,TX
Posts: 391
Hummie2 is an unknown quantity at this point
Default

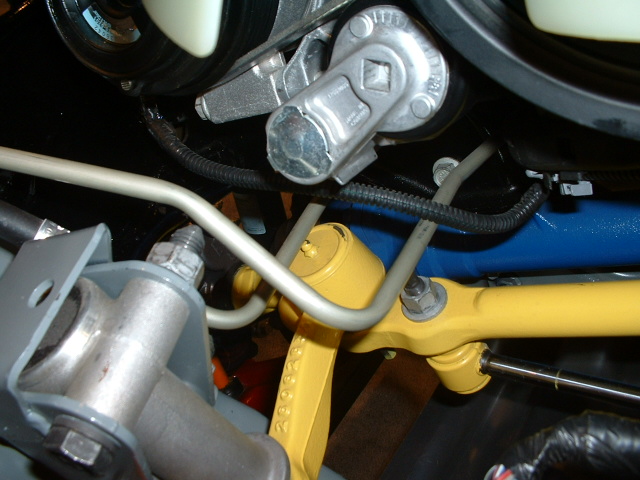

Here are some pics of display at Houston Auto Show of H2 with body removed. You can see some of the lube points behind the skid plate.
All view are from top side of frame.

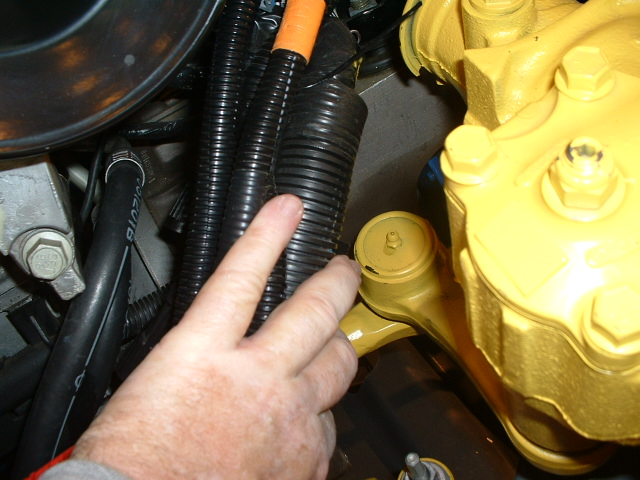

Pitman Arm on Steering Gear

[This message was edited by Hummie2 on January 25, 2003 at 08:21 PM.]
Attached Images

Reply With Quote
  #14
Old 01-26-2003, 02:24 AM
Hummie2's Avatar
Hummie2 Hummie2 is offline
Hummer Professional

Join Date: Nov 2002
Location: La Porte,TX
Posts: 391
Hummie2 is an unknown quantity at this point
Default

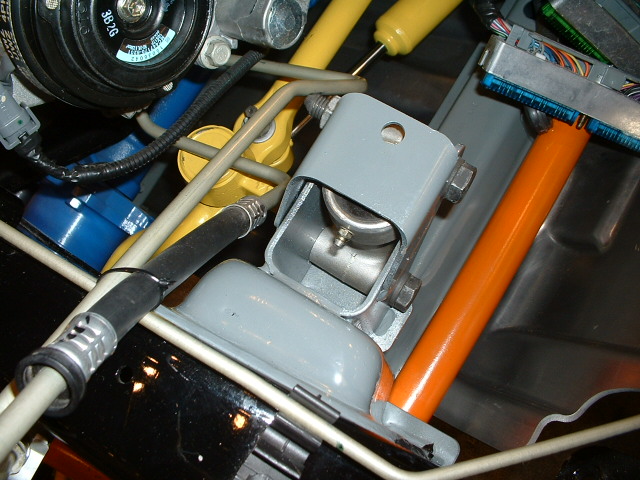

Steering Idler Arm on rt. side frame rail
Attached Images

Reply With Quote
  #15
Old 01-26-2003, 02:30 AM
Hummie2's Avatar
Hummie2 Hummie2 is offline
Hummer Professional

Join Date: Nov 2002
Location: La Porte,TX
Posts: 391
Hummie2 is an unknown quantity at this point
Default

Another lube point on Idler Arm.

As before looking down from top side of frame.
Attached Images

Reply With Quote
  #16
Old 01-26-2003, 04:47 AM
JJ JJ is offline

Join Date: Nov 2002
Location: Land of Enchantment
Posts: 230
JJ is off the scale
Default

[quote]Originally posted by Hummerstein:
Be careful w/ taking your rig for an oil change. Due to the location of the filter and the skid plate I just returned from a Chev Dealer to find the dealer had not tightened my filter w/ oil pouring out all under my drivetrain. Took it to a Hummer dealer only to find they were having the same problem.

I changed the oil myself at 3000 miles. Due to the filter location, you can't get a good hand grip on it to fully tighten it. I purchased one of those filter cap wrenches (socket) that you insert a socket driver into. The cap fits on the end of the filter and you tighten it with a socket driver, gently of course. Works great - Walmart price approx. $3.


Hummie2 - thanks for posting all the photos.

JJ
Reply With Quote
  #17
Old 03-18-2005, 05:39 AM
dochummer's Avatar
dochummer dochummer is offline
Hummer Guru

Join Date: Nov 2004
Location: Eastern Washington
Posts: 2,452
dochummer is an unknown quantity at this point
Default

Lube points. Ok, so I am completely incompetent when it comes to this kind of stuff. I did just finish the oil change, which may not seem like much...but hey, it's a start. What exactly do I need in order to lube these areas under the truck, and it's 18 points right? And do you just pump oil into it until it's completely full or what?
__________________


'03 H2
Reply With Quote
  #18
Old 03-20-2005, 01:59 AM
LasVegas LasVegas is offline

Join Date: Aug 2003
Location: \"Lost Wages\"
Posts: 1,150
LasVegas is off the scale
Default

<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by Hummie2:
Another lube point on Idler Arm.

As before looking down from top side of frame. </div></BLOCKQUOTE>I've been having my rig lubed at oil change (not dealer) and have been curious on whether they knew fitting locations. I now have my own pneumatic grease gun and got under my rig & checked. They got the obvious ones, but not the secret ones. The Idler Arm zerk with the bulleting to replace with a 90 degree fitting was interesting. I removed and replaced it. The fitting I took out was a FALSE fitting i.e. completely closed! Don't understand that at all. Any ideas why GM would do that? And oh, your picture without all the other components installed makes it look easy to get to that zerk. It ain't!
__________________
Jonahs
Reply With Quote
  #19
Old 03-20-2005, 04:13 PM
KenP's Avatar
KenP KenP is offline
Hummer Messiah

Join Date: Apr 2003
Location: Virginia Beach
Posts: 37,474
KenP is an unknown quantity at this point
Default

Gosh, I saw the title of this thread and thought "her backside with KY, Duh..." Sheez, what do I know?
__________________
"My reading of history convinces me that most bad government results from too much government."---Thomas Jefferson
Reply With Quote
  #20
Old 03-20-2005, 09:11 PM
LasVegas LasVegas is offline

Join Date: Aug 2003
Location: \"Lost Wages\"
Posts: 1,150
LasVegas is off the scale
Default

<BLOCKQUOTE class="ip-ubbcode-quote"><div class="ip-ubbcode-quote-title">quote:</div><div class="ip-ubbcode-quote-content">Originally posted by KenP:
Gosh, I saw the title of this thread and thought "her backside with KY, Duh..." Sheez, what do I know? </div></BLOCKQUOTE>Ken, Ken, Ken, have a Coor's Light
__________________
Jonahs
Reply With Quote
