Go Back   Hummer Forums by Elcova > Hummer H3 Discussion Forums > Technical Discussion and Customizing your H3

Reply

Thread Tools Search this Thread Display Modes
  #1
Old 10-16-2006, 02:57 PM
mountainbiker mountainbiker is offline
Hummer Professional

Join Date: Aug 2006
Posts: 297
mountainbiker is on a distinguished road
Default Which OPTIMA battery to use?

The Optima fit guide online doesn't list the HUMMERs. If you have any experience with them in your H3, maybe you can answer these questions:
  • Do you know which model/part number you used? (Was it the 34 series red top?)
  • How did it fit (e.g., taller, wider, etc.)?
  • How did you secure it (e.g., gravity, strap or other)?
  • Any pictures of it sitting pretty in your engine compartment?
Reply With Quote
  #2
Old 10-16-2006, 06:20 PM
BEST 4x4xFAR's Avatar
BEST 4x4xFAR BEST 4x4xFAR is offline
Hummer Veteran

Join Date: Dec 2002
Location: Maryland
Posts: 39
BEST 4x4xFAR is off the scale
Default Re: Which OPTIMA battery to use?

We don't own an H3 at this time, but either the red top or yellow top group 34 Optima should work out fine. You may also want to consider an Odyssey battery as well. Same concept as the Optima (AGM), but many will argue an even better battery...

http://www.odysseyfactory.com/product_list.htm

The PC1500 is most comparable to the Optima:

http://www.odysseyfactory.com/docume...0-001_0506.pdf
__________________
------------------
~Scott T.
'95 D-90 ST
"If you're not living on the edge, you're taking up too much space!"
http://www.putfile.com/lrnad90
Reply With Quote
  #3
Old 10-16-2006, 06:50 PM
Big Z Big Z is offline
Hummer Authority

Join Date: Nov 2002
Location: Wherever I Go, There I Am!
Posts: 1,216
Big Z has a little shameless behaviour in the past
Default Re: Which OPTIMA battery to use?

Red top...if it fits.
Reply With Quote
  #4
Old 10-16-2006, 07:06 PM
Desert Dan's Avatar
Desert Dan Desert Dan is offline
Hummer Expert

Join Date: May 2005
Location: Southern California
Posts: 829
Desert Dan is an unknown quantity at this point
Default Re: Which OPTIMA battery to use?

I put in a Red Top.

It came with a different clamp/clip that fits at the bottom of the battery. The nylon strap is too loose with the optima and the plastic cover needs to be trimmed to make room for the sight change in the terminal locations.
__________________
Desert Dan

H3 2006 Adventure/Lux/5-speed/sunroof/rock rails/underbody skids/block heater/Boulder Grey/ Defender Roof Rack

Jeep TJ Rubicon 2003
1988 Jeep Cherokee

Gone - But- Not Forgotten 4x4's
1994 Jeep YJ
Toyota 4x4 Truck(s)
1970 Jeep CJ-5
1962 Willys Wagon
Reply With Quote
  #5
Old 10-16-2006, 07:59 PM
H3HUMMER's Avatar
H3HUMMER H3HUMMER is offline
Hummer Veteran

Join Date: Sep 2006
Posts: 120
H3HUMMER is on a distinguished road
Default Re: Which OPTIMA battery to use?

The yellow one is the best
Reply With Quote
  #6
Old 10-16-2006, 08:01 PM
H3HUMMER's Avatar
H3HUMMER H3HUMMER is offline
Hummer Veteran

Join Date: Sep 2006
Posts: 120
H3HUMMER is on a distinguished road
Default Re: Which OPTIMA battery to use?

http://www.optimabatteries.com/publi...utomotive.html
Reply With Quote
  #7
Old 10-18-2006, 10:12 PM
mountainbiker mountainbiker is offline
Hummer Professional

Join Date: Aug 2006
Posts: 297
mountainbiker is on a distinguished road
Default Re: Which OPTIMA battery to use?

Quote:
Please accept our apologies for the delayed response.

We do not have information for the H3 as of yet, although if it takes the same battery as the H2, the correct battery would be the 34/78 red top or D34/78 in the yellow top.

Please feel free to contact customer service at the number below if you have any other questions. Thank you for your interest and support of Optima Batteries.

Optima Batteries
Customer Service
1.800.292.4359
.
Reply With Quote
  #8
Old 10-20-2006, 11:50 PM
mountainbiker mountainbiker is offline
Hummer Professional

Join Date: Aug 2006
Posts: 297
mountainbiker is on a distinguished road
Default Re: Which OPTIMA battery to use?

Disregard the previous post.

Those batteries are 10" long. I tried another 10" battery this evening that the base service station had; however, it wouldn't fit (at least not without some cutting). I am trying to find a nearby Optima dealer with some of the other models available that are just over 9" long.

I am getting the sh*ts of my battery leaving me standing there with my jumper cables.
Reply With Quote
  #9
Old 10-21-2006, 03:57 PM
mountainbiker mountainbiker is offline
Hummer Professional

Join Date: Aug 2006
Posts: 297
mountainbiker is on a distinguished road
Default Re: Which OPTIMA battery to use?

Quote:
Originally Posted by DesertDan
I put in a Red Top.

It came with a different clamp/clip that fits at the bottom of the battery. The nylon strap is too loose with the optima and the plastic cover needs to be trimmed to make room for the sight change in the terminal locations.
DesertDan would you happen to know the Red Top part number? Can you describe or show a picture of the clamp/clip you used? Can you describe or show a picture of the mod you made to the plastic cover?


Trying to find a battery for my H3 overseas is turning out to be a pain. I can get one at the HUMMER dealer, but it is $368 and a 6-hour roundtrip to collect it. They cannot ship it to me as they don't have a courier to transport acid filled batteries. (I bet this same battery is $100 back in the States.)

I can get a gel battery like the Optima ($40-80 cheaper) shipped, but who really wants to take the Dremel drill to their new car to make it fit?
  • Who has bought a replacement ACDelco P/N 86-7YR? Cost?
  • Who has had their ACDeleco battery replaced with another free by their dealer?
  • Who has replaced their battery with another brand like the Optima? What was the part number?

Last edited by mountainbiker : 10-22-2006 at 11:23 AM.
Reply With Quote
  #10
Old 10-22-2006, 11:18 AM
mountainbiker mountainbiker is offline
Hummer Professional

Join Date: Aug 2006
Posts: 297
mountainbiker is on a distinguished road
Default Re: Which OPTIMA battery to use?

I pulled out my POS dead ACDelco (P/N 86-7YR) battery. It is making a nice paper weight in my garage. I also have a paper weight in the driveway called a H3.

I will trade you some battery specs below for pictures of your gel cell battery installed in your battery tray, and a description or pictures of your battery tray mods:

ACDelco (P/N 86-7YR)

690CCA and 50Ah

L: 9" *
* The battery box has plastic tabs on each end. If you remove the 3 tabs on one end, then you'd get about another 1/2". If you removed a wire fastener and 3 tabs on the other end, you'd get another 1/2". A 10" L battery would be tight.

W: 6-3/4 - 7" **
** The base of the battery is 7" but then it tapers in slightly to 6-3/4". I think if it was a straight 7", you might have an issue with the metal bracket that holds the nylon strap.

H: 8-1/4" ***
*** This includes 1" for the posts.

The battery box lid has some extra big holes for the terminals. On the width side, they are centered between 5" + 1-3/4". On the length side, they are like 0.8" + 7.3" + 0.8". It will be hard to understand, so it is probably easier for you to measure this one yourself.

Optima 25, 35, and 75/25

720CCA and 44Ah

L: 9.313”
W: 6.813”
H: 7.625”

Optima 34 and 34/78

800CCA and 50Ah

L: 10”
W: 6.875”
H: 7.813”

Last edited by mountainbiker : 10-22-2006 at 11:24 AM.
Reply With Quote
  #11
Old 10-22-2006, 05:39 PM
mountainbiker mountainbiker is offline
Hummer Professional

Join Date: Aug 2006
Posts: 297
mountainbiker is on a distinguished road
Angry Who is using a different battery? Pictures? Model?

A funny joke for you


What do you get when you have a POS one of these?





A (brand-new) driveway paper weight !!!

Reply With Quote
  #12
Old 10-27-2006, 05:26 PM
mountainbiker mountainbiker is offline
Hummer Professional

Join Date: Aug 2006
Posts: 297
mountainbiker is on a distinguished road
Default Re: Which OPTIMA battery to use?

Well, I just went up to the base Auto Skills Center and put in my new battery. I ordered the Optima Red Top Series 25 (or S 3,7 as it is called here). For me here, it cost just over $200 with shipping.

The Series 25 sat very nicely in the base of the H3's 9-inch long battery box. I went to the grinder and grinded a channel in the retaining wedge (that sits a top of the battery retaining strap). The channel was about the depth and width of the nut that holds it down. This allowed me to tighten the strap down nice and securely. I tried to reuse the battery box lid, but the Series 25 sits just a hair lower, and the holes in the cover were not a perfect match for the posts. I am not sure at this writing if I will leave uncovered like most of you, or enlarge the holes. I tried to push out by hand the plastic fastener holding the battery box's breather tube, but it didn't want to move. I'll save that for another day.

It will probably be another week before I can drive it as my H3 is all torn a part doing the light modification. It really blows having to tear your brand new car a part.

BTW: Anyone have a good mailing address for the HUMMER Customer Assistance Center? I want to submit a warranty claim for a battery that was sh*t at 74 miles. I emailed HUMMER.com two days ago, but I haven't received a response yet.





Last edited by mountainbiker : 10-28-2006 at 11:53 AM.
Reply With Quote
  #13
Old 10-28-2006, 12:01 PM
mountainbiker mountainbiker is offline
Hummer Professional

Join Date: Aug 2006
Posts: 297
mountainbiker is on a distinguished road
Default Re: Which OPTIMA battery to use?



My brand new battery is dead. Either my friend accidently left the door ajar overnight (which I am hoping but doubt), or I have a problem worse than a two dead batteries (OEM and Optima). I think I better go reread the forum battery discussions.

Last edited by mountainbiker : 10-28-2006 at 12:05 PM.
Reply With Quote
  #14
Old 10-28-2006, 07:40 PM
fourfourto's Avatar
fourfourto fourfourto is offline
Hummer Guru

Join Date: Sep 2005
Location: fort salonga ny
Posts: 3,784
fourfourto is an unknown quantity at this point
Default Re: Which OPTIMA battery to use?

Quote:
Originally Posted by mountainbiker


My brand new battery is dead. Either my friend accidently left the door ajar overnight (which I am hoping but doubt), or I have a problem worse than a two dead batteries (OEM and Optima). I think I better go reread the forum battery discussions.


If the door is left open the light will go out in apx 15 to 20 minutes.
try a current drain test.Dealer should do this under warranty
Good luck
__________________
H3 gray adventure,brushguard,hood handles,sunroof,steps,crossbows,smokers package,window/sunroof visor,Airbrushed spare tire cover,mudflaps,K&N filter,SS Hummer insert,Hummer rubber mats,cargo rubber mat + shade,12 volt airhorn,eclipse nav/dvd/rear camera/mini remote,autostart,12 volt fridge,high beam garage remote,underhood air compressor, taillight bezels ,clinometer ,trailer brake and hitch.
Reply With Quote
  #15
Old 10-28-2006, 07:50 PM
mountainbiker mountainbiker is offline
Hummer Professional

Join Date: Aug 2006
Posts: 297
mountainbiker is on a distinguished road
Default Re: Which OPTIMA battery to use?

Quote:
Originally Posted by fourfourto
If the door is left open the light will go out in apx 15 to 20 minutes
I thought that might be the case, and maybe even if the door was ajar that it wasn't my problem.

Quote:
Originally Posted by fourfourto
try a current drain test. Dealer should do this under warranty
I will have to figure it out without dealer due to my location.

Quote:
Originally Posted by fourfourto
Good luck
Thank you
Reply With Quote
  #16
Old 10-29-2006, 01:28 AM
mountainbiker mountainbiker is offline
Hummer Professional

Join Date: Aug 2006
Posts: 297
mountainbiker is on a distinguished road
Default Re: Which OPTIMA battery to use?

My battery keeps running down. Does that mean I need a new battery?

It might, but then again it might not. The only way to know for sure is to (1) test the condition of the battery to see if it is capable of holding a charge, (2) check the output of the charging system to see if it is functioning properly, and (3) if the battery and charging system are okay, check for a possible current drain on the battery when the key is off. In other words, if the battery is okay and the charging system is doing its job, then something is draining voltage from the battery and running it down when the key is off.

One way to check the battery is to recharge it, then let it sit for a day with both battery cables disconnected. If the battery holds the charge and doesn't run down, it's probably okay, and the problem is in your charging system or wiring.

To see if the charging system is working properly, start the car and turn on the headlights. If the headlights are dim, it indicates the lights are running off the battery and that little or no juice is being produced by the alternator. If the lights get brighter as you rev the engine, it means the alternator is producing some current, but may not be producing enough at idle to keep the battery properly charged. If the lights have normal brightness and don't change intensity as the engine is revved, your charging system is functioning normally.

You can also check the charging system by connecting the leads of a voltmeter to the battery. When the engine starts, the charging voltage should jump to about 14.5 or higher. If the reading doesn't change or rises less than a volt, you have a charging problem that will require further diagnosis.

If the battery and charging system seem to be working normally, the only thing that's left is the electrical system. If the battery runs down overnight or when the vehicle sits for several days, it means something is remaining on and drawing current when the ignition is turned off. It may be a trunk light or cigarette lighter that remains on all the time, a fuel pump relay or other relay with frozen contacts that's drawing current, a rear window defroster that doesn't shut off, or a short in the radio or other electrical accessory.

All vehicles draw a little current from the battery when the key is off to run the clock, keep the memory alive in a digital radio (so it doesn't forget the station settings) and the engine computer. Alarm systems need current to keep their circuits armed as do cellular phones.

Current drain on the battery can be checked with an ammeter. Make sure the ignition is off, then disconnect one of the battery cables. Connect one ammeter lead to the battery and the other to the cable. The normal current drain on most vehicles should be about 25 milliamps or less. If the key-off drain exceeds 100 milliamps, there's an electrical problem that requires further diagnosis.

Finding the hidden current drain can be time consuming. The easiest way to isolate the problem is to pull one fuse at a time from the fuse panel until the ammeter reading drops. This will tell you which circuit is draining the battery. Then you have to check the wiring and each of the components in that circuit to pinpoint the problem.

Source: http://autos.yahoo.com/maintain/repa...ques028_3.html
Reply With Quote
  #17
Old 04-20-2007, 07:29 PM
JeffW JeffW is offline
Hummer Veteran

Join Date: Oct 2005
Location: WA
Posts: 82
JeffW is off the scale
Default Re: Which OPTIMA battery to use?

I just installed a 34/78 Optima Yellow Top. Although the specs say it is 10" long, it is only 9.5" at the base. And the rounded nature of the cylinders gives even a little more leeway. Each side of the bottom of the battery box has 3 tabs. I only had to trim the rear two on each side to half their width to get the battery in. To secure the battery in the back I replaced the stock trapezoidal piece with the one that comes with the Optima battery.

To make the strap snug, I added a piece of wood to the top of the battery. Two pieces of lattic (the strips used to make/repair lattice fences) were the perfect width and thickness... narrow enough to fit in between the terminal mounds, and not too thick to prevent the top from closing. I glued them together, rounded the ends, and attached to the top of the battery with double-sided tape.

Then to preserve the heat shielding capability, I cut the terminal openings in the battery box lid inward to about an 1/8" into the label. Easy job with a Dremel tool. Fits good, looks good, works good.
__________________
H3, Boulder Grey, Cashmere Lux, Off-road pkg, Toyo M/T 33" tires, in-dash computer installed!
Reply With Quote
  #18
Old 04-20-2007, 08:02 PM
fourfourto's Avatar
fourfourto fourfourto is offline
Hummer Guru

Join Date: Sep 2005
Location: fort salonga ny
Posts: 3,784
fourfourto is an unknown quantity at this point
Default Re: Which OPTIMA battery to use?

I was thinking yellow top also .
Do you have the part # of the battery you used ?

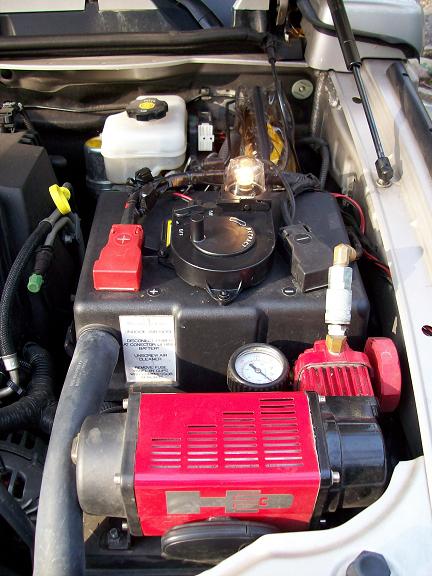

Also some pics of install,I want to reuse the top of factory box as I mounted a light to it.
Attached Images

__________________
H3 gray adventure,brushguard,hood handles,sunroof,steps,crossbows,smokers package,window/sunroof visor,Airbrushed spare tire cover,mudflaps,K&N filter,SS Hummer insert,Hummer rubber mats,cargo rubber mat + shade,12 volt airhorn,eclipse nav/dvd/rear camera/mini remote,autostart,12 volt fridge,high beam garage remote,underhood air compressor, taillight bezels ,clinometer ,trailer brake and hitch.
Reply With Quote
  #19
Old 04-20-2007, 08:22 PM
JeffW JeffW is offline
Hummer Veteran

Join Date: Oct 2005
Location: WA
Posts: 82
JeffW is off the scale
Default Re: Which OPTIMA battery to use?

It should be this one:

http://www.optimabatteries.com/publish/optima/americas0/en/config/product_info/automotive/deep_cycle/spec_sheets.RowPar.0001.ContentPar.0001.ColumnPar. 0005.File.tmp/D34_78_082104.pdf

D34/78, part #: 8014-045

I got it at Costco and I think it is the only Yellow Top they carry.

I will be back under the hood this weekend and double check. I will also try to snap some pics.

From your picture, though, it looks like it might be pretty close. I had to trim to the other side of that plastic stop for the positive terminal, which looks like it would intrude on your light mount.
__________________
H3, Boulder Grey, Cashmere Lux, Off-road pkg, Toyo M/T 33" tires, in-dash computer installed!
Reply With Quote
  #20
Old 04-20-2007, 10:47 PM
fourfourto's Avatar
fourfourto fourfourto is offline
Hummer Guru

Join Date: Sep 2005
Location: fort salonga ny
Posts: 3,784
fourfourto is an unknown quantity at this point
Default Re: Which OPTIMA battery to use?

Thanks I wrote info down,so when I eventually get one I have the #.
I think I have almost a inch between the stop and the light.
I could always move light over some if needed.

I havent had any battery problems since 03/06 ,im not running dvd as long without it running also moved 12v fridge relay to a ignition wire.

I would like not to worry about the battery and in the neer future I would like to hook up a winch so the yellow top would work great.
__________________
H3 gray adventure,brushguard,hood handles,sunroof,steps,crossbows,smokers package,window/sunroof visor,Airbrushed spare tire cover,mudflaps,K&N filter,SS Hummer insert,Hummer rubber mats,cargo rubber mat + shade,12 volt airhorn,eclipse nav/dvd/rear camera/mini remote,autostart,12 volt fridge,high beam garage remote,underhood air compressor, taillight bezels ,clinometer ,trailer brake and hitch.
Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

vB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT +1. The time now is 10:41 AM.


Powered by vBulletin Version 3.0.7
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
